AV endoscope camera module 5.5mm diameter VGA mini camera module

Name: AV endoscope camera module 55mm diameter VGA mini camera module
Brand: CCOM LENS
Price: 1 USD

AV endoscope camera module 5.5mm diameter VGA mini camera module Manufactures

Place of Origin : China

Model Number : 5560-LED

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

MOQ : 100pcs

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

Contact Now

Power input Camera input: DC 3.3V~5V, LED Input: DC 3.6V

Power Consumption 30mA±5mA (w/o White LED)

Image device Super Color VGA Sensor

Effective pixels 642X484

Sensor Scan Mode Progressive Scan

S/N Ratio 34dB

Dynamic Range 66dB

Light Source Build in 6pcs 0402 White LED

AGC Auto

Shutter Type Electronic Rolling Shutter (ERS)

Gamma Correction 0.45

Lens View Angle(Fov) Fov (D):59°

Lens F/NO F 2.8

Focal Length Focus : 2cm~7cm

Lens Construction 2 plastic + IR cut + Cover Glass

TV Distortion < 1%

Water Resistance IP67

Operating Temperature -20°C to +60°C

Operating Humidity 30%~90%Rh

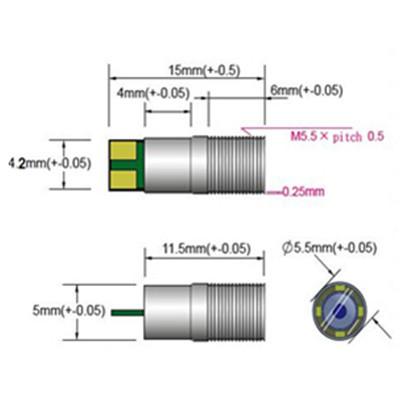

Dimensions D5.5mm X L15mm

TV Output Control Board:

TV System NTSC PAL

Frame Rate 60 Field/sec 50 Field/sec

Power input DC 3.3~5V

Power Consumption 160mA±10mA

Video Output Composite Video signal: 1.0Vp-p, 75 ohms

Operating Temperature -20°C to +60°C

Operating Humidity 30%~90%Rh

Dimensions 35mm X 15mm
